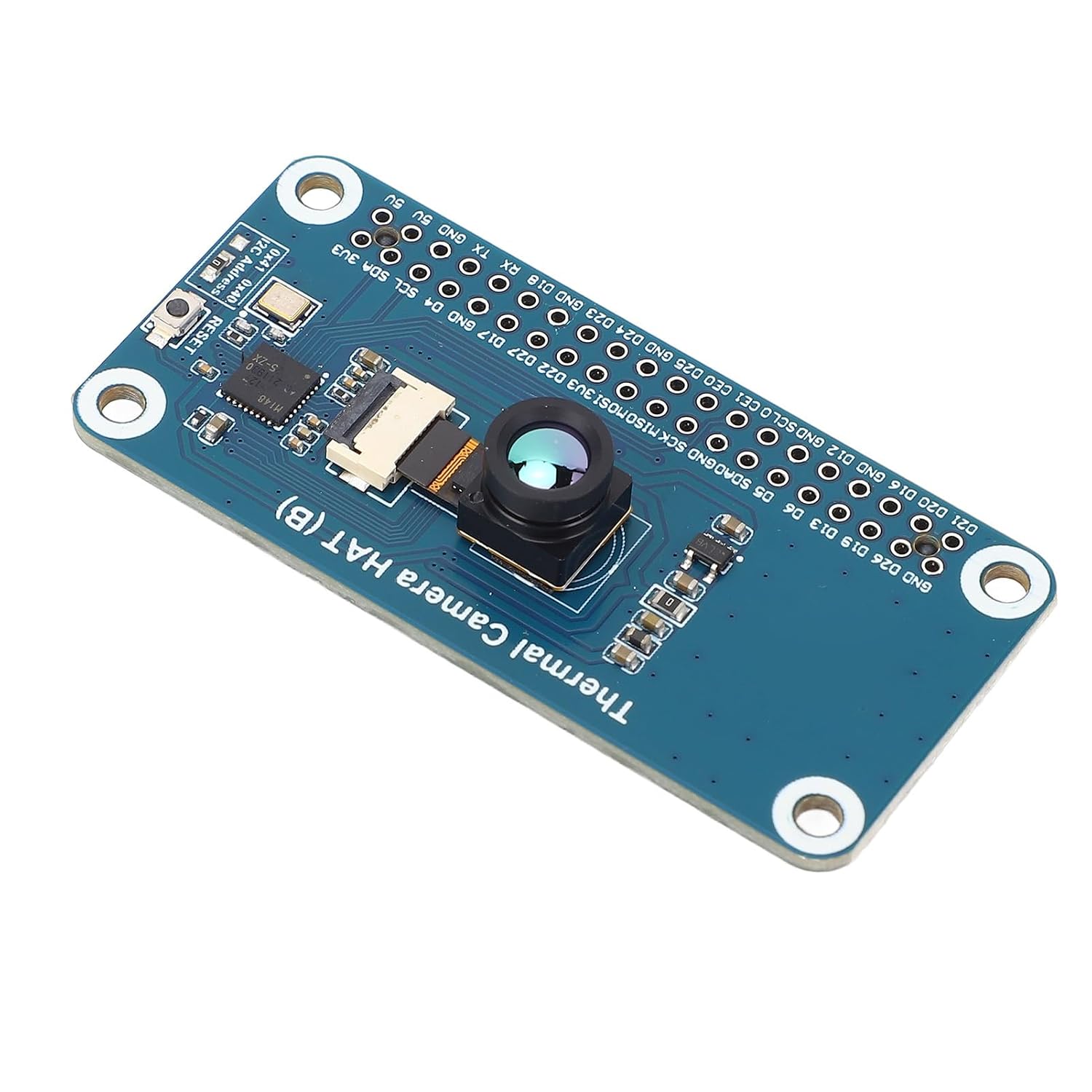

Dpofirs Thermal Camera HAT for 5 4B 3B Pico, 80x62 Pixels, 45° FOV, 40-Pin GPIO, Shutterless Thermal Imaging Module

Feature: 1. WORKING PRINCIPLE: It utilizes a technology of microbolometer and thermopile pixels with an 80x62 array. It can detect the radiation energy distribution of objects in the lens field of view, and after quantitative processing can obtain the temperature distribution of objects in the field of view and generate thermal imaging map, which is convenient to be integrated into various industrial or intelligent control applications. 2. OPTIMIZED DESIGN: The IR thermal imaging camera HAT features a compact lens size of just , an improved internal filter and image processing algorithm. 3. SHUTTERLESS TECHNOLOGY: With a no shutter design, this thermal camera HAT supports continuous running and thermal image video streaming. 4. HIGH PERFORMANCE: Supporting a maximum frame rate output of 25 , it delivers smooth thermal imaging video streams. The noise equivalent temperature difference (NETD) of 125mK RMS at 1Hz ensures noise performance. 5. EASY INTEGRATION: The thermal camera module is designed with an FPC cable connection method, allowing for simple integration into existing systems. Support for RasPi 5 4B 3B, for , for W, for 2W for Pico, for Pico W, for Pico WH. Specification: Item Type: Thermal Imaging Sensor Module Material: PCB Operating Voltage: 5V Operating Current: 20mA 5V Wavelength Range: 8-14μm Field of View: 56°(D) x 45°(H) x 34°(V) (Regular Version) Operating Temperature: -40°C-85°C Target Temperature: -40°C-400°C Detection Accuracy: ±2°C Refresh Rate: 25 (Maximum). Package List: 1 x Thermal Imaging Sensor Module1 x Pin Header1 x Screw Pack

• High-Resolution Thermal Imaging: Features an 80x62 microbolometer array for detailed thermal imaging, capable of detecting object temperature distribution and generating clear thermal maps for industrial and smart control applications.
• Optimized Compact Design: Incorporates a compact lens, improved internal filter, and advanced image processing algorithms for reliable and accurate thermal detection in a small form factor.
• Shutterless & Continuous Operation: Utilizes a shutterless design that supports uninterrupted 25 video streaming and continuous running, ideal for real-time thermal monitoring and video applications.
• Superior Performance Specifications: Delivers smooth video with a 25 frame rate and excellent noise performance (125mK NETD). Offers a wide -40°C to 400°C target temperature range with ±2°C accuracy.
• Easy & Pico Integration: Designed for simple setup with FPC cable connection and 40-pin GPIO header. Compatible with 5, 4B, 3B, , W, 2W, Pico, Pico W, and Pico WH.
